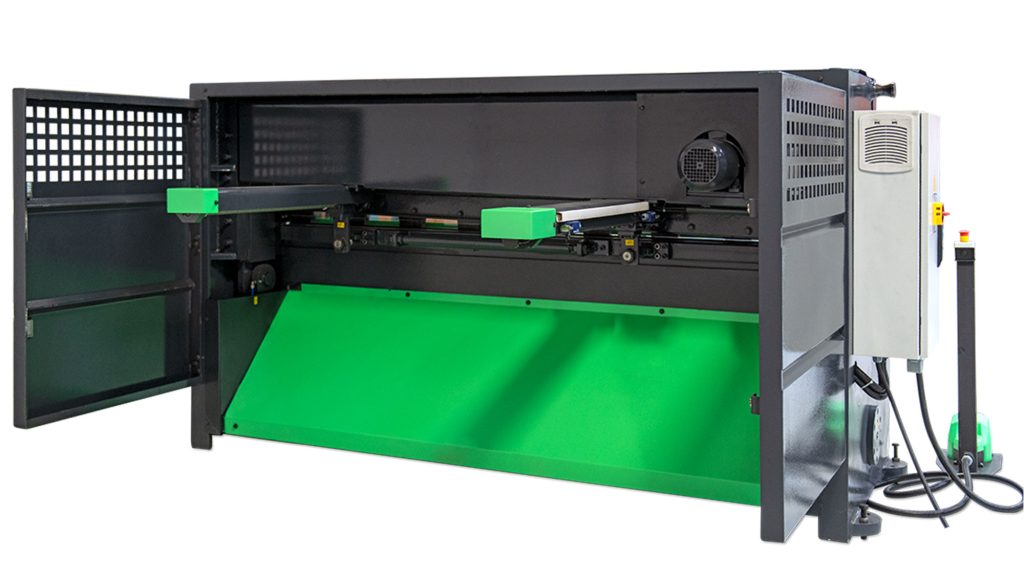

HM Machinery WKS Range Guillotine Shears (Motorised)

The HM WKS Range motorised power shears model compact machine of modern design. The all-welded gables with adjustable guideways guarantees high cutting quality.

These machines have smooth and lacquered surfaces for minimum cleaning. Power is transmitted from a standard gear brake motor via chain drive to the main shaft.

Two heavy-duty eccentrics draw the knife beam to the material. The automatically actuated rubber coated sheet hold down unit, coupled with a facility for fine adjustment of the high quality knives, guarantees a perfect cut. Special roller bearings, non-lubricating Teflon bearings and guide ways, guarantees a very high reliability, and minimum levels and maintenance.

The WKS is a low-noise production shear with optimum cutting quality and long working life.

WKS shears are as standard equipped with:

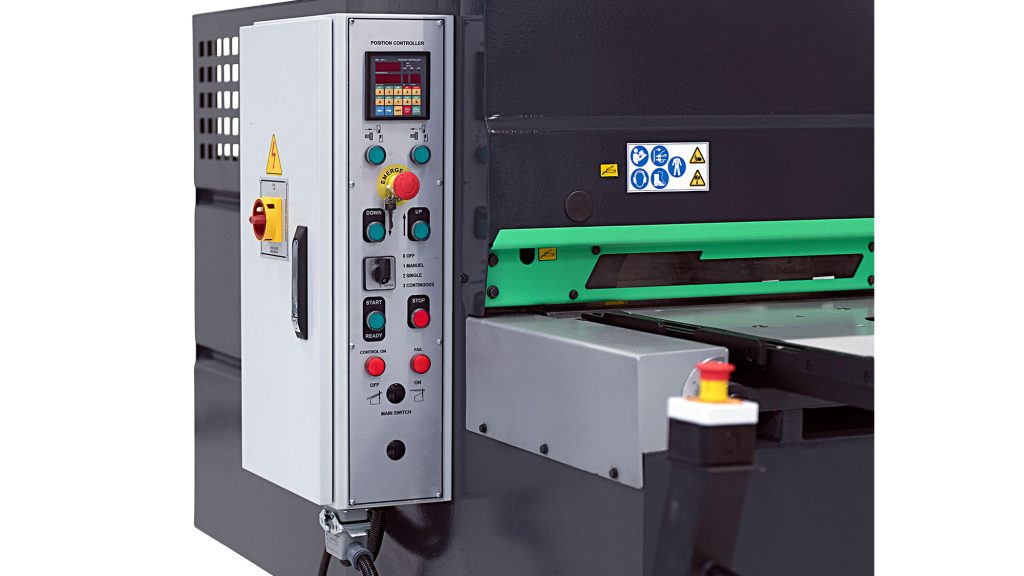

• Motorised back gauge with NC control 750mm • Cutting counter

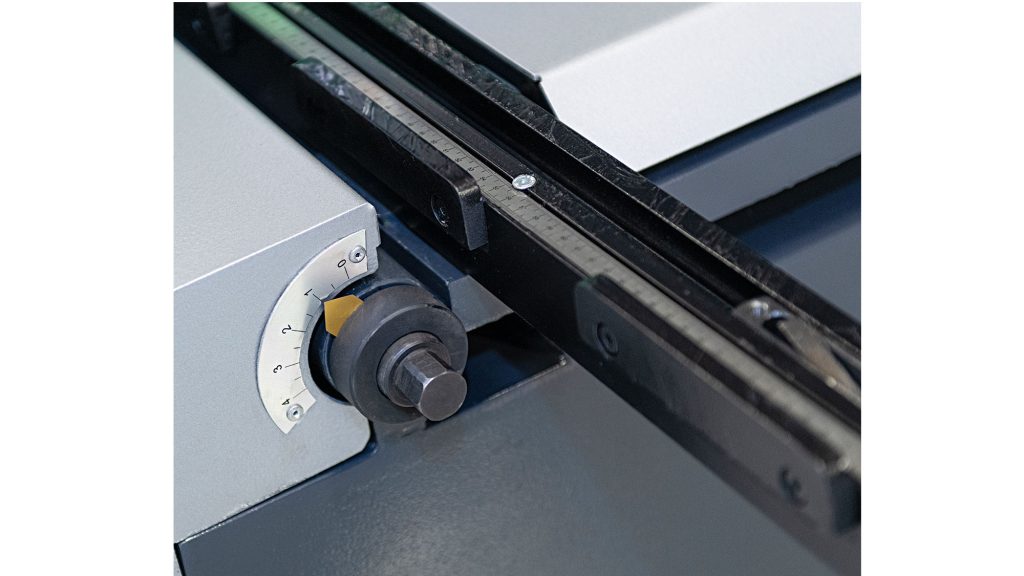

• Angle stop with millimetre scale and T-slot • Illumination of cutting edge

• Rear light-guarding system • Self-lubricating guides

• Double eccentric drive on the cutter bar • Rubber-coated sheet holder

• Low knife angle and burr-free cutting
