category: Combination Lathes, Turning
Use: Educational, Industrial
The Alpha XC series are powerful 3 axis conversational lathes that can also run CNC programs developed elsewhere or to create CNC programs for use on other machines.

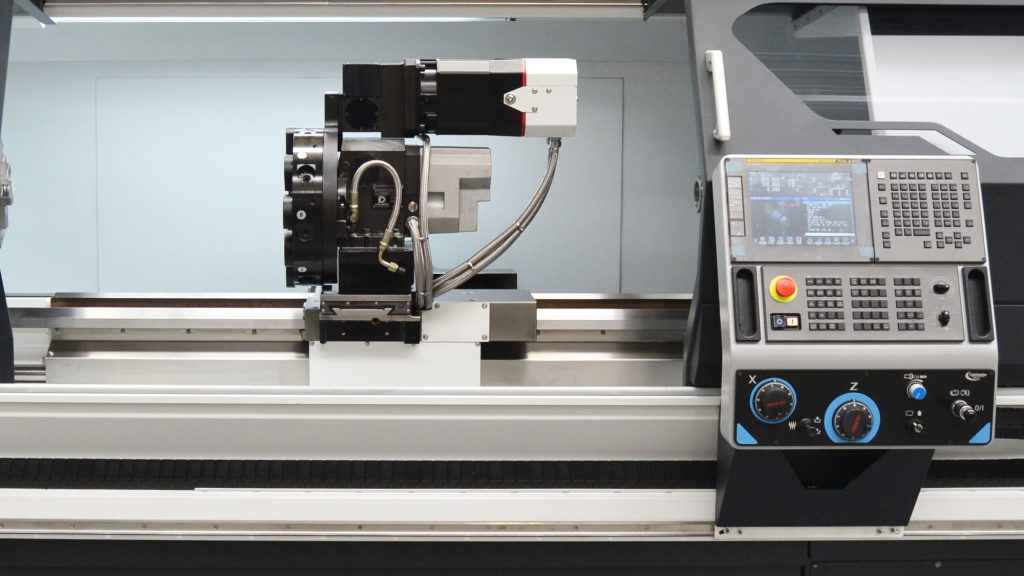

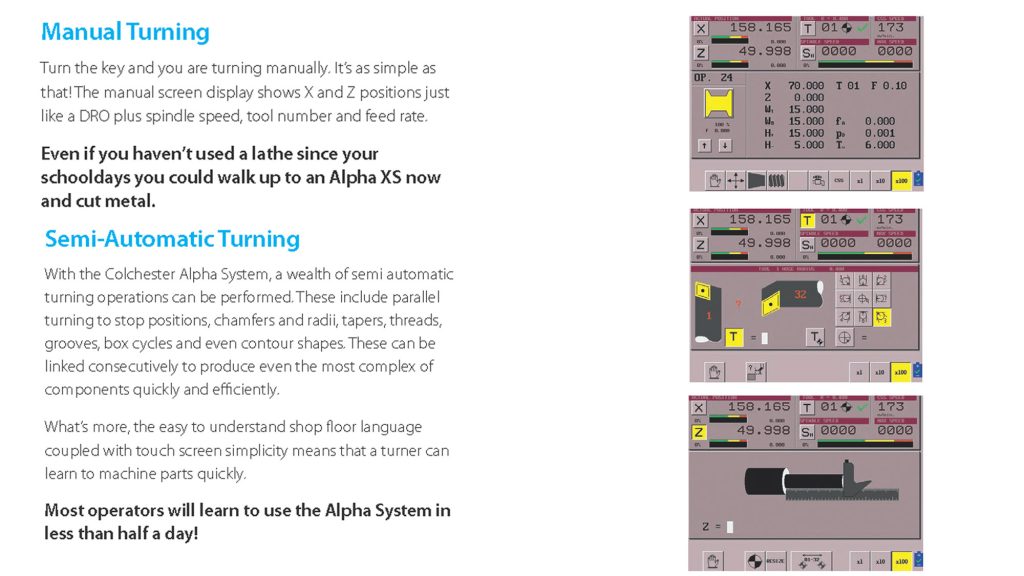

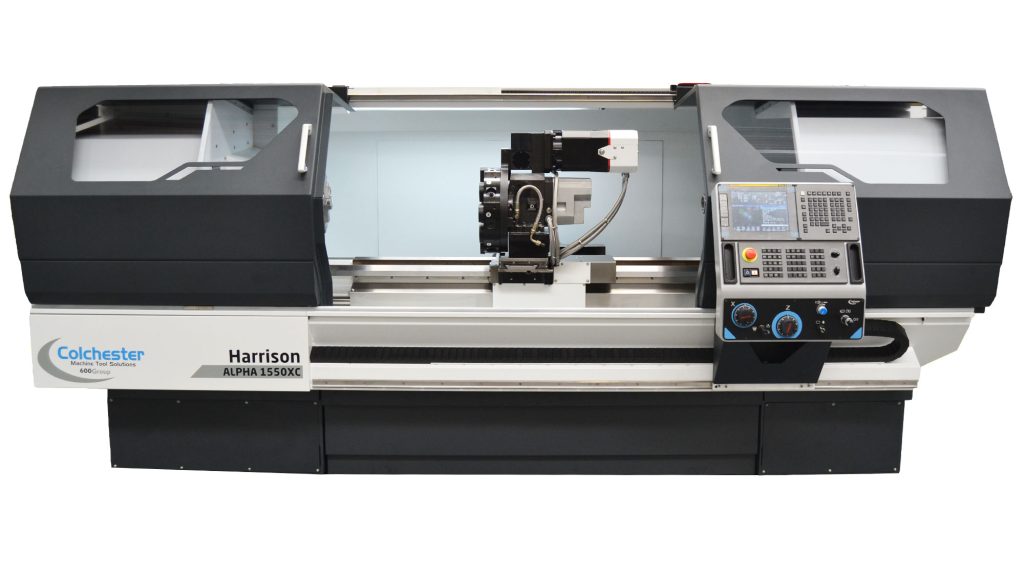

The Alpha XC 3-axis CNC combination lathe is identical in functionality to the Alpha XS range of machines, but now has the addition of a fully interpolating c-axis, while still retaining the operational simplicity that makes the Alpha range the leading choice worldwide. The manual / CNC lathe is mounted with a newly developed headstock, allowing programmed selection of the c–axis drive, allowing milling / drilling cycles to be achieved with the use of driven tooling. To allow for these extra lathe operations, full c-axis cycles are available through the Manual Guide i conversational programming system.
| Condition | New |
|---|---|
| Model | Harrison Alpha 1400XC, Harrison Alpha 1550XC, Harrison Alpha 1760XC |
| Distance between centres | 1200mm, 1550mm / 2000mm / 3000mm / 4000mm / 5000mm / 6000mm, 2000mm / 3000mm |
| Spindle Bore | 104mm, 155mm, 42mm, 55mm, 78mm |

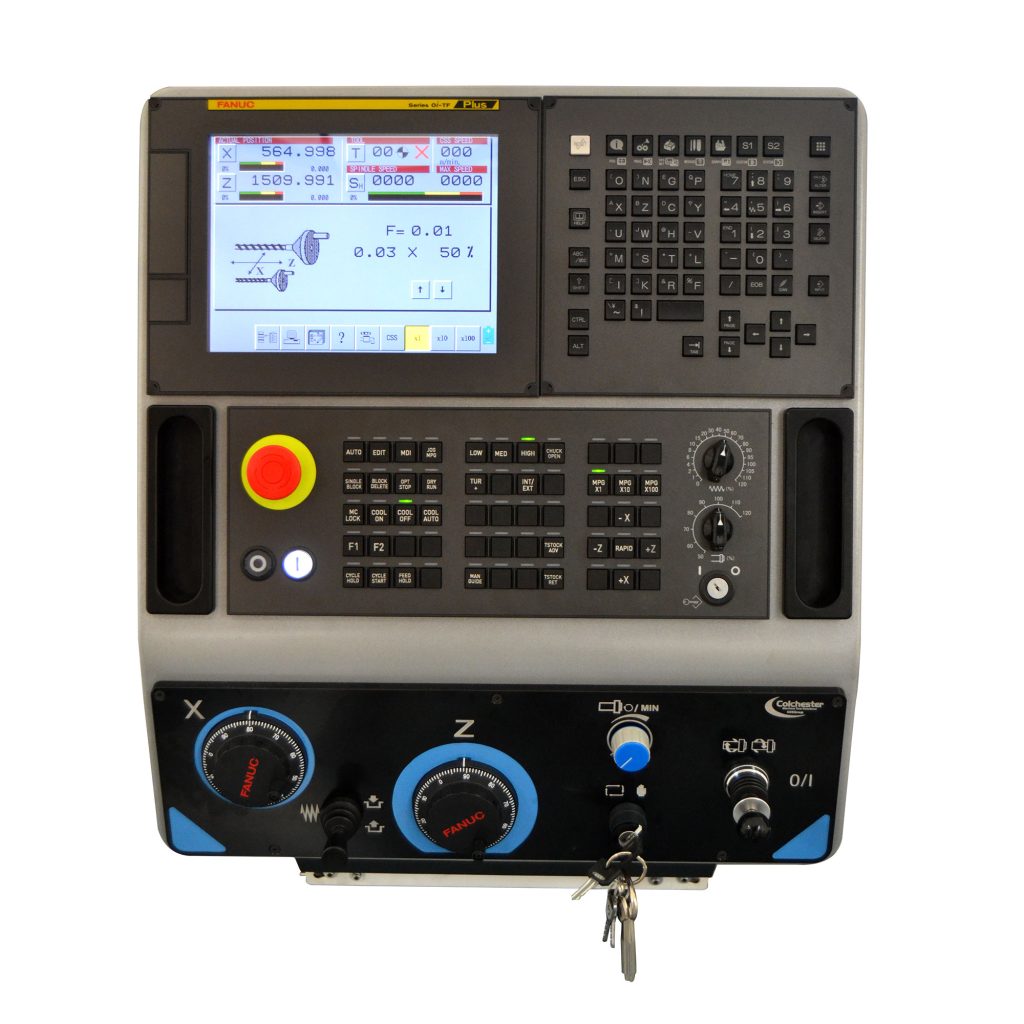

| CNC Control System | Fanuc Oi-TF Plus |
| Spindle motor | 11Kw, 15KW, 18.5Kw, 7.5KW |
| Spindle Nose | A2-11, D1-11 Camlock, D1-11/A2-11, D1-4 Camlock, D1-6 Camlock, D1-8 Camlock |
| Spindle speed | 1 - 2000rpm, 1 - 2200rpm, 1 - 2700rpm, 1 - 3500rpm, 10 - 1400rpm, 26 - 2000rpm |
| Turret Type | VDI 20 - 8 Driven (of 8), VDI 40 - 12 Driven (of 12), VDI 40 - 4 Driven (of 8) |
| C-Axis | YES |
