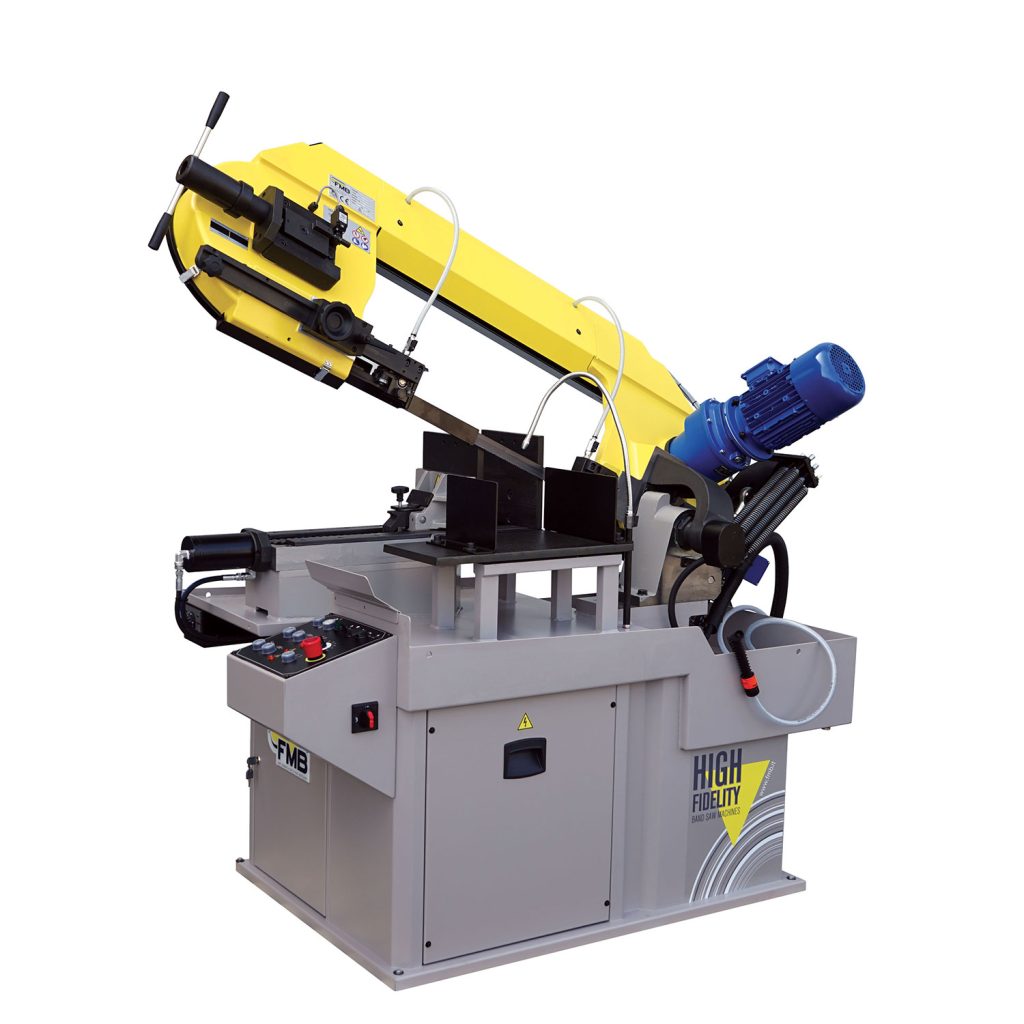

FMB HERCULES Semi-Automatic Bandsaw

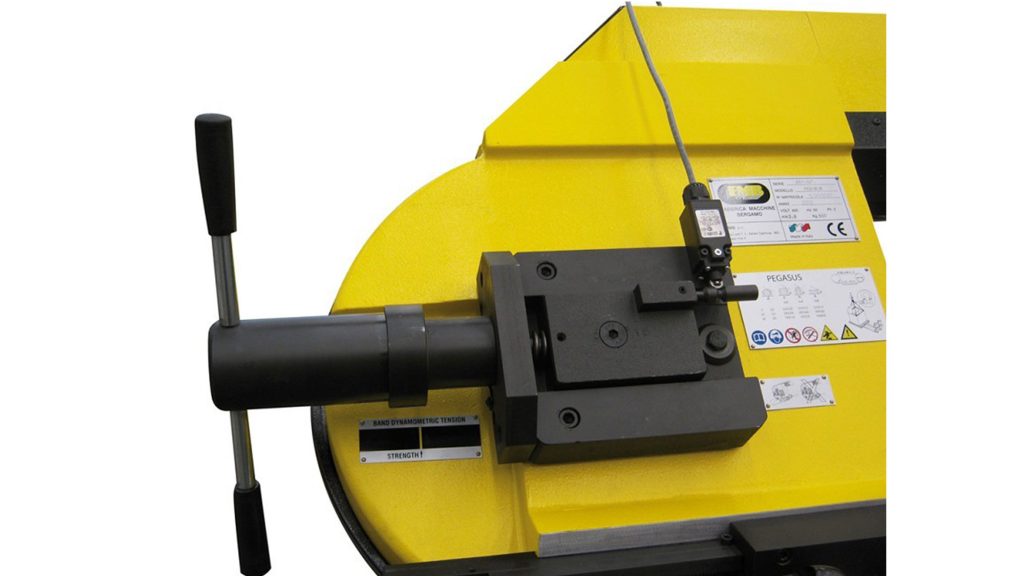

Heavy duty FMB Hercules Bandsaws are Semi-automatic for straight cuts. The head structure in special aluminium casting alloy. Dynamic blade tensioning with a blade break micro switch. Blade cleaning brush is integrated in the head protection cover. Head feeding system with hydraulic cylinder and descent adjustment by flow control valve placed at the front position of the saw. Blade guides with combined action of side bearings, carbide plates and top bearing. Reduction gear box with inclined ground, case hardened teeth lubricated with long lasting grease.

FMB Hercules Bandsaw std equipment

Reference length stop measuring system, cutting length 0÷600mm. Heavy duty machine base, sheet metal construction, raised sides for chips & coolant containment.

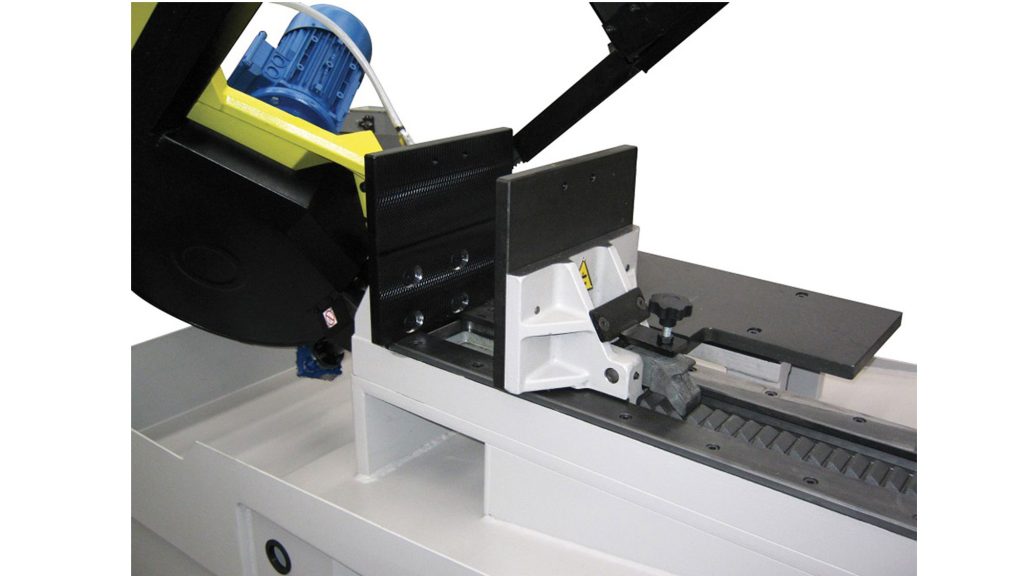

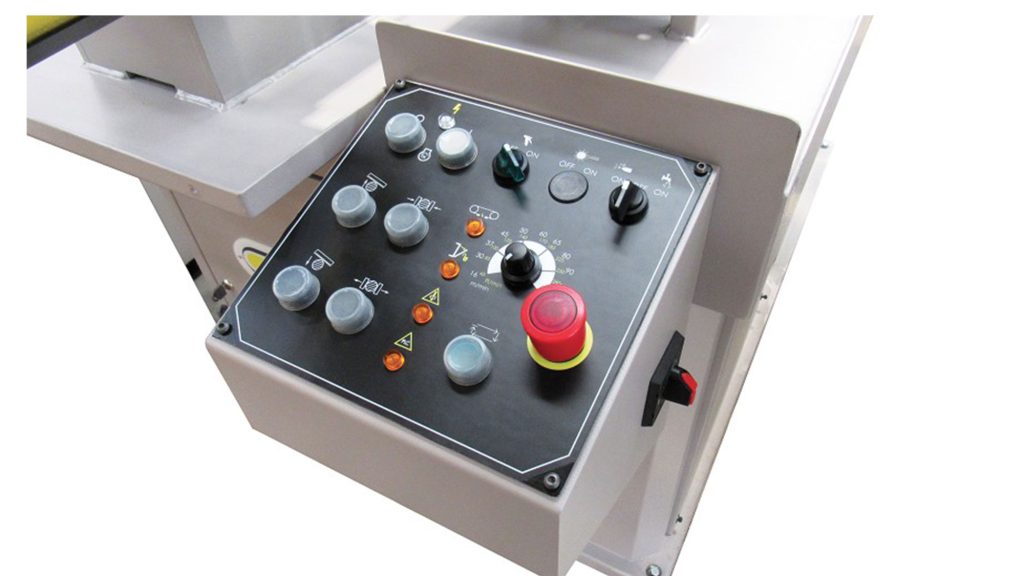

Base unit door with key locking, housing the coolant pump & tank, plus the hydraulic pump unit for bow cylinder movement, vice cylinder. Electrical cabinet with 24VAC, lockable main switch and electric drives. Total protection against highest voltage and short circuit current. Protection level IP 55. Electronic control panel: blade speed selection, piece counter, coolant selection, angle display (Code: VAT Optional) and cutting height memorizing. Alarm messages display and auto checking at start up.
