category: Bench Drills
Use: Industrial
Flott TB range of high speed drilling machines.
The Plus Series is divided into three platforms:
1. Small bench drills and column drill presses 10 – 15 Plus
2. Medium bench drills and column drill presses 18 – 25 Plus
3. Large bench drills and column drill presses 30 – 40 Plus
The control system with display and rotary knob is consistent across all the Plus drilling machines. Once an operator has received training, they can work with any of the machines straight away.
The A-parts of the mechanics, such as spindles, tail spindles, drill bit processing, are manufactured in Remscheid in Bökerbau and seamlessly transferred to the assembly line. This guarantees short distances and the highest quality and precision.
This is the basis for the 3-year manufacturer’s guarantee for single-shift operation (on request, this can be extended up to 5 years, subject to an additional charge).
The belt drive* with German quality motors, frequency converters and innovative electronics creates high performance drilling machines with high torque values and a variable range of speeds.

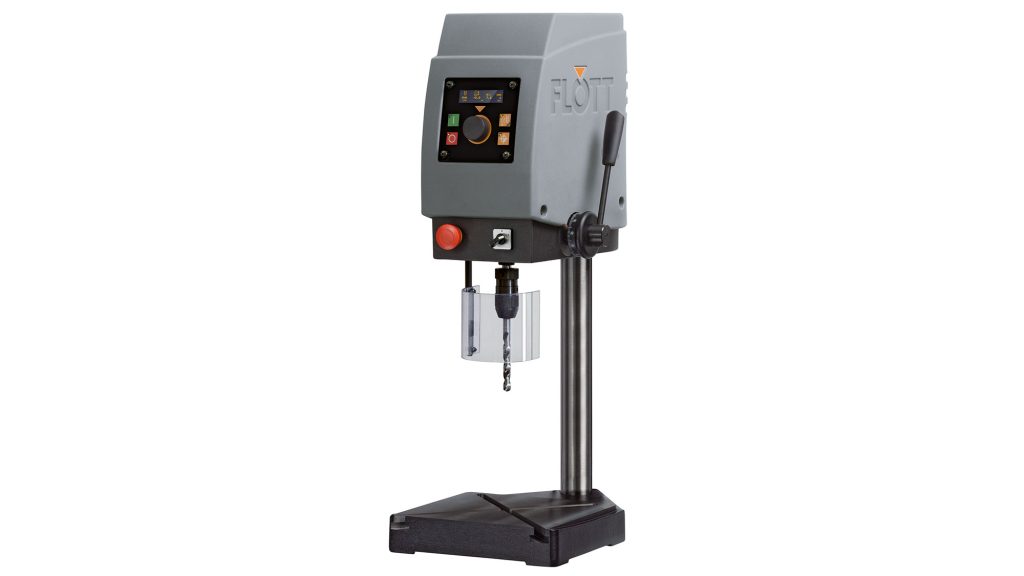

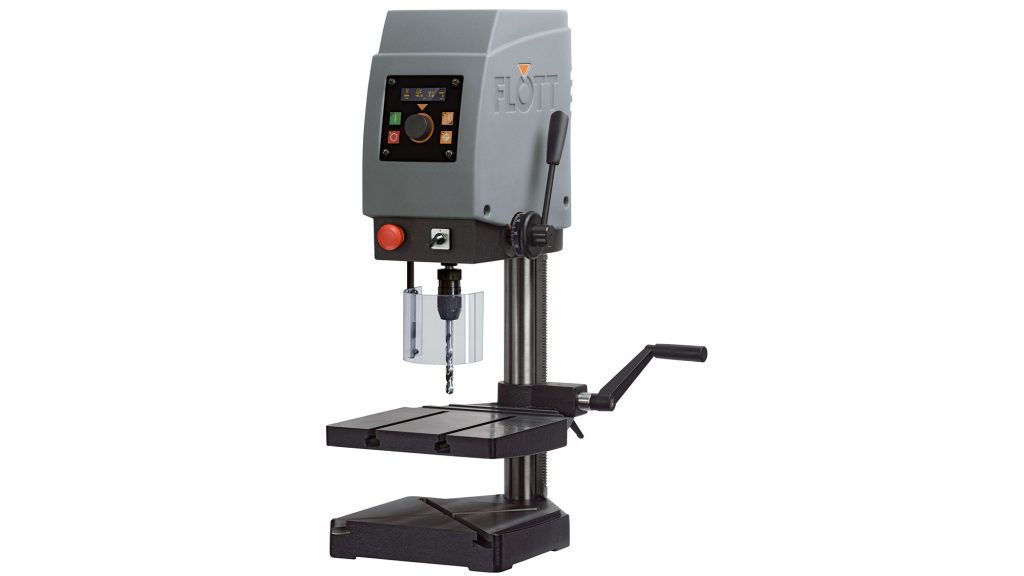

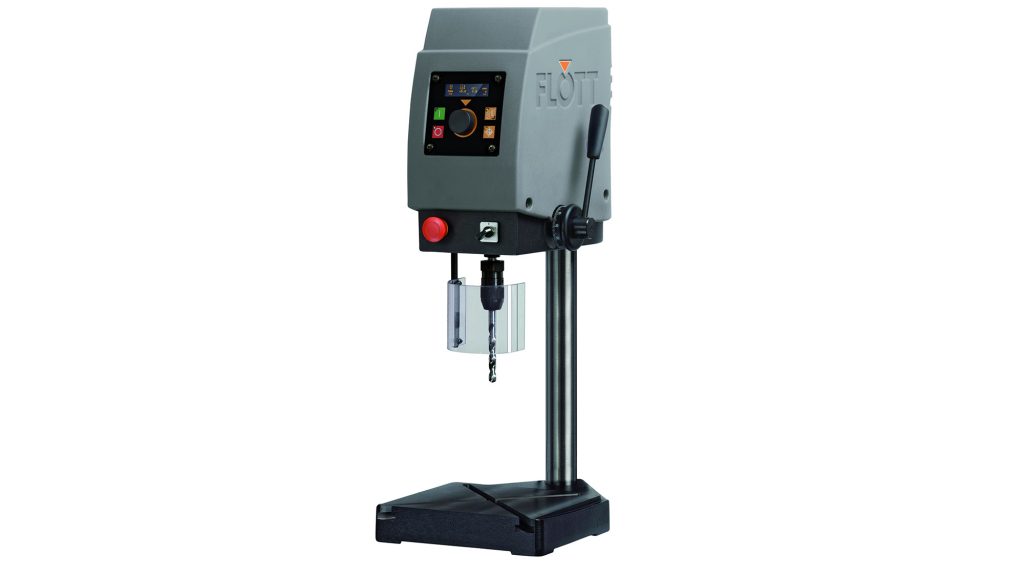

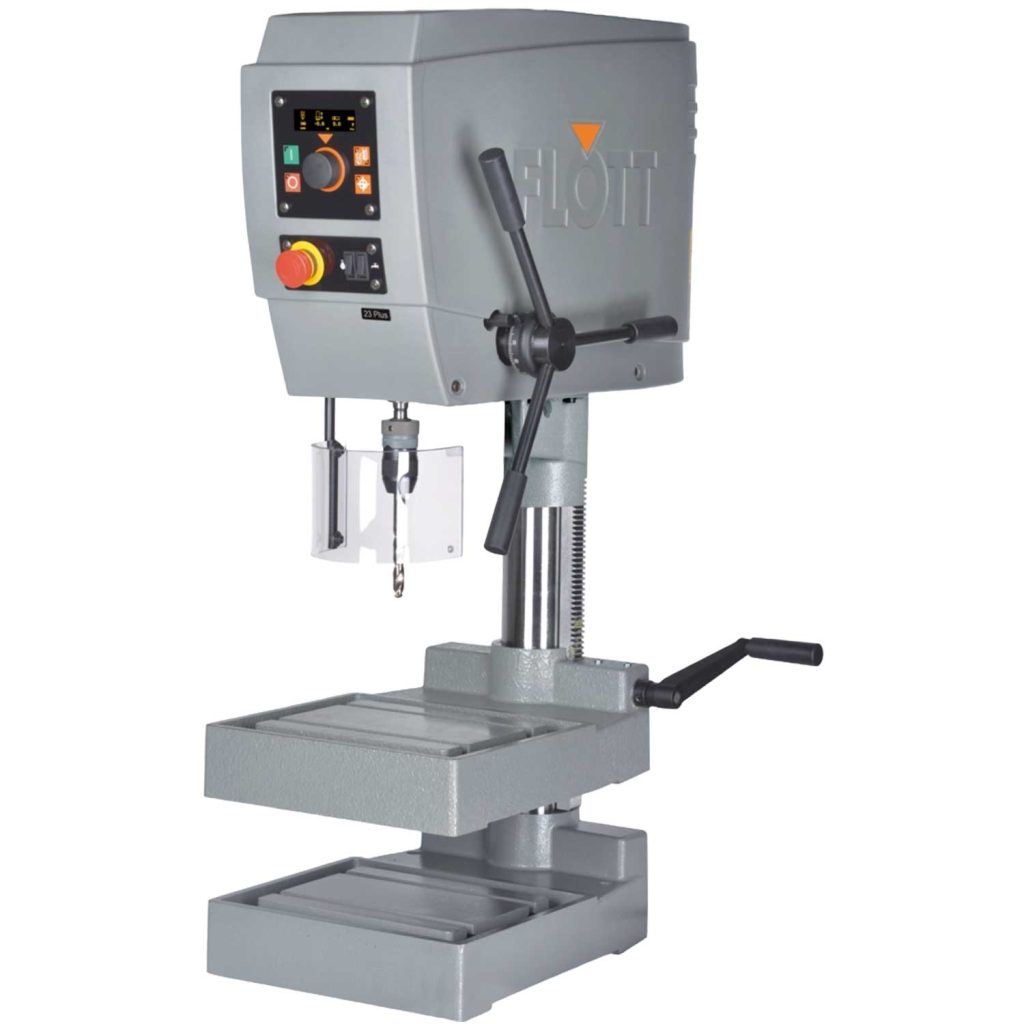

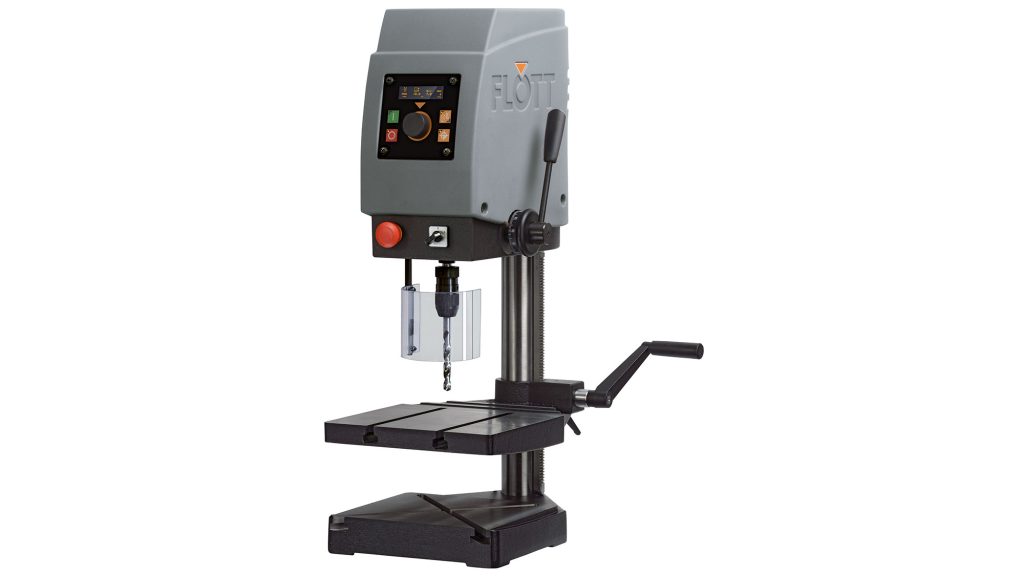

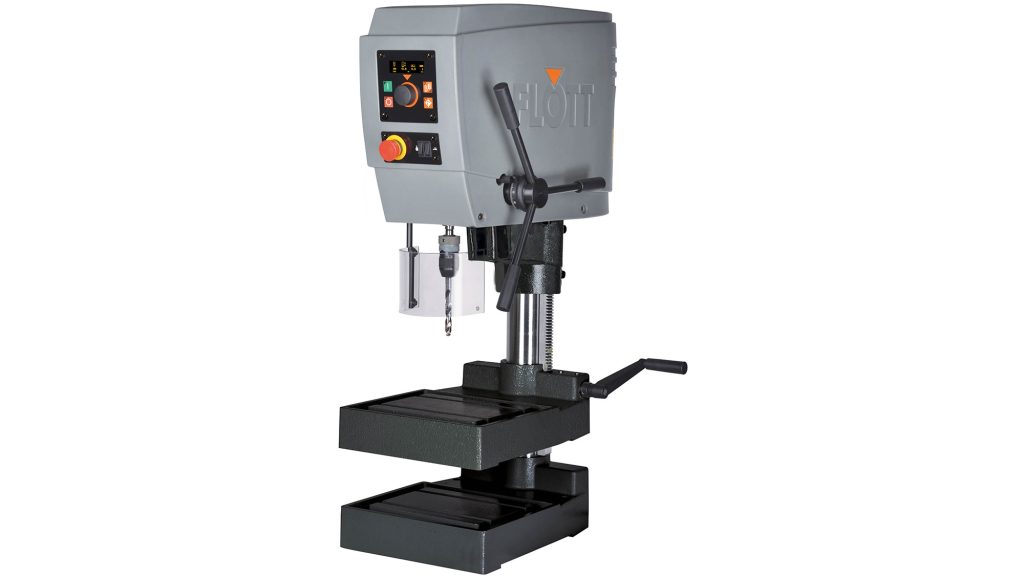

| Model | Flott Turbodrill (6/8mm 10,1000rpm), Flott TB10 Plus (10/12mm 60-6,000rpm), Flott TB13 Plus (13/15mm 40-4,000rpm), Flott TB15 Plus (15/18mm 40-4,000rpm), Flott TB18 Plus (18/20mm 30-3,000rpm), Flott TB20 Plus (20/23mm 40-4,000rpm), Flott TB23 Plus (23/25mm 20-2000rpm) |
|---|---|
| Condition | New |
| Drilling Capacity | 10/12mm, 13/15mm, 15/18mm, 18/20mm, 20/23mm, 23/25mm, 6/8mm |
| Spindle Holder | B12, B16, B16 (Optional MK2), MK2 |
| Drilling Depth | 100mm, 60mm, 70mm |
| Maximum Thread Cutting | M10*, M12*, M14*, M16*, M5*, M6* |
| Spindle speed | 100-10,000rpm, 20-2000rpm, 30-3000rpm, 40-4000rpm, 60-6000rpm |
