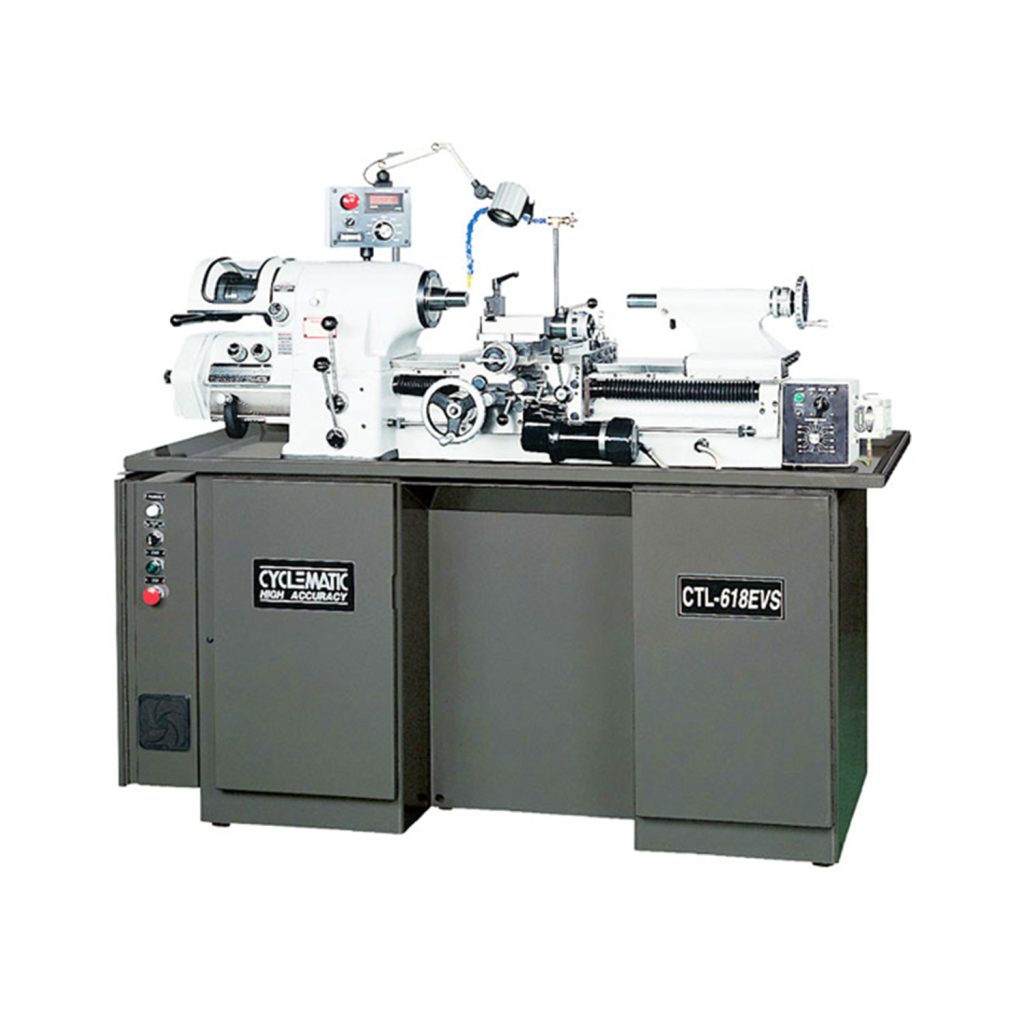

Cyclematic CTL618 Toolroom Lathe Range

Use: Educational, Industrial

Cyclematic CTL618 Toolroom Lathe Range

Additional information

Condition

New

Manufacturer

Cyclematic

Machine options

Model

Machine overview

The Cyclematic CTL618 Toolroom Lathe range are high precision toolroom centre lathes with a 457mm distance between centres and 280mm swing over the bed.

OPTIONS: a huge range of chucks, turrets, steady rests, tool holders, collet changers and turning attachments.

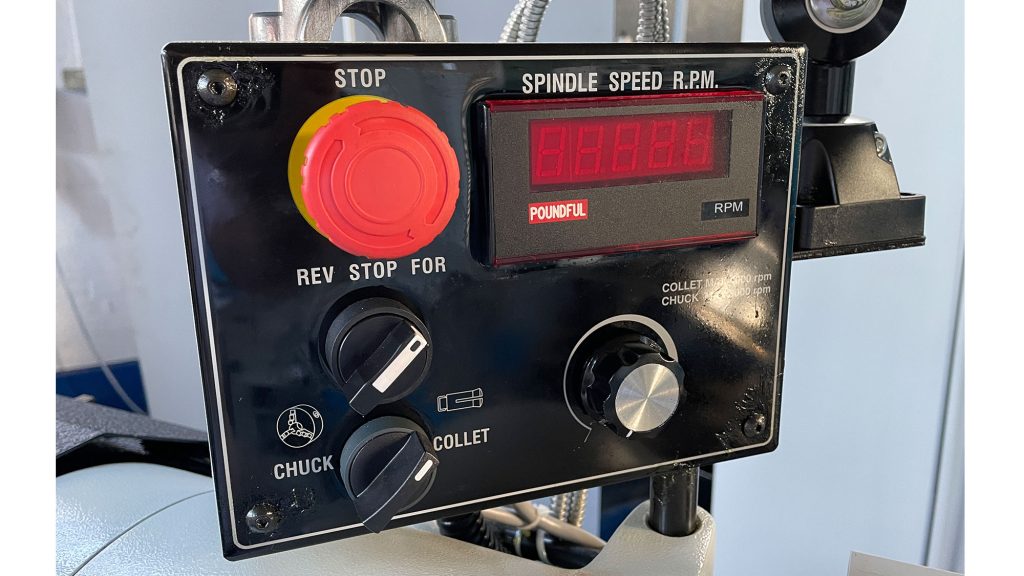

ELECTRONIC Variable Spindle Speed: Depending on chuck configurations, the inverter controlled spindle can run to 4,000rpm for exact turning requirements allowing you to select the correct turning speed for the job in hand.
ACCURACY: Run out within 0125mm on the hardened and precision ground spindle, mounted on high precision preloaded angular contact bearings maximising rigidity.

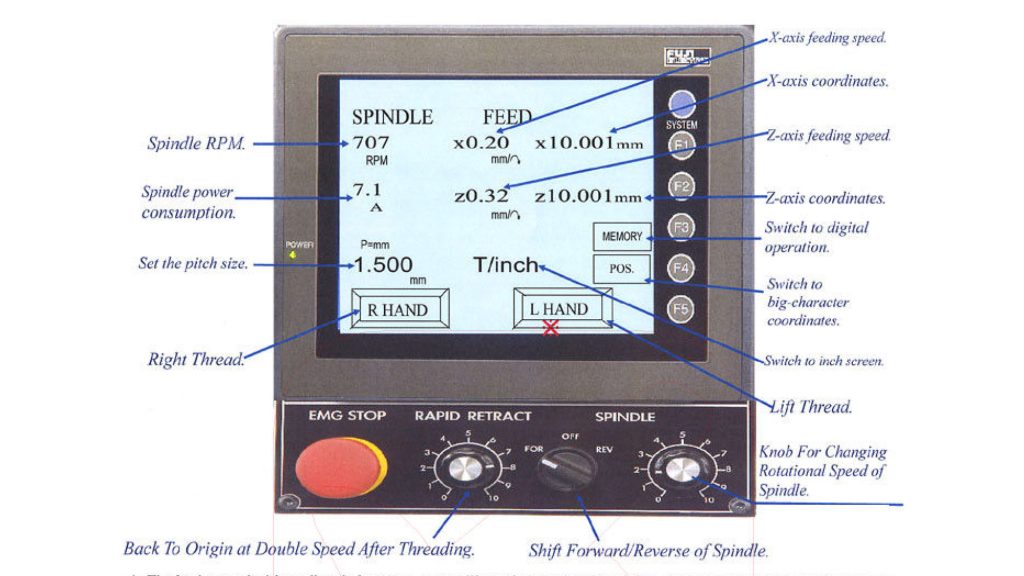

Two models : CTL618E and the CTL618EVS. The CTL618E has the digital threading control.

Cyclematic CTL618 Toolroom Lathe range is ideal to replace your aging Hardinge HLVH Super Precision Lathe.

Specification

Model	Cyclematic CTL618E, Cyclematic CTL618EVS
Condition	New
Distance between centres	457mm
Spindle Bore	31.75mm
Spindle speed	50-4000 rpm [using 5C chuck] 50-3000rpm [using 150mm 3jaw chuck]
Spindle motor	3HP
