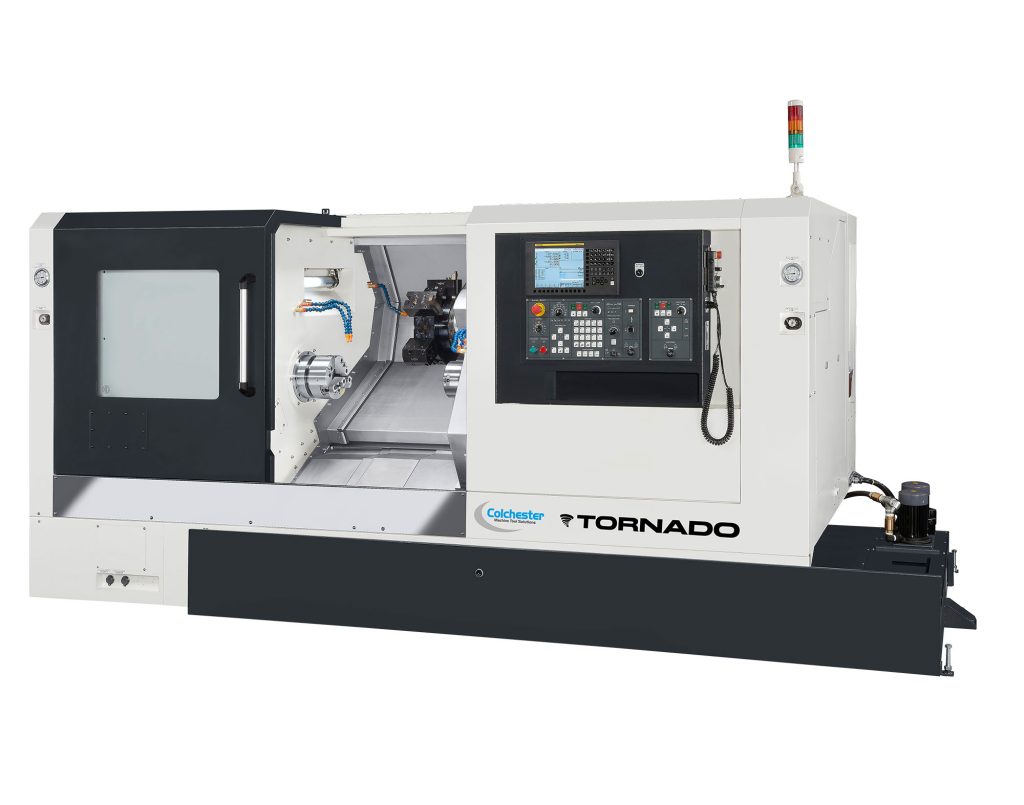

        Colchester Tornado CNC Lathes 2 axis

        Colchester Tornado CNC Lathes 2 axis

        Jump to

        Use: Educational, Industrial

        Colchester Tornado CNC Lathes 2 axis

        Additional information

        Condition

        Manufacturer

        Machine options

        Machine overview

        Slant bed CNC production lathes ideal for high speed, high precision, smooth machining applications.

        Constructed from high quality meehanite cast iron ensures rigidity and accuracy. Combined with precise linear guideway construction ensures outstanding machining efficiency and value throughout its lifetime. Through exceptional design, process control and build quality ensures that versatility and rigidity are integrated as standard, leading to superior component finish, performed smoothly and easily.

        Fitted with the very latest in CNC control system with integrated conversational programming software, ensures ease of operation and allows the operator to quickly set and program each new component quickly and efficiently.

        Backed by a team of factory trained service engineers throughout the UK ensures your machine can be fully maintained and supported for many years to come.

        The combination of Colchester’s unrivalled heritage and trusted after sales support makes the Tornado CNC turning centres the ideal machine tool for all engineering and manufacturing businesses.

        Specification

        Model Colchester Tornado SL25, Colchester Tornado SL30, Colchester Tornado SL30L, Colchester Tornado SL35, Colchester Tornado SL35L, Colchester Tornado SL40, Colchester Tornado SL40L
        CNC Control System Fanuc Oi-TF Plus, Fanuc Oi-TF Plus 15" [Optional Siemens 828D with Shopturn]
        Chuck size 200mm, 200mm [Optional 250mm], 250mm {Optional 300mm], 380mm {Optional 450mm]
        Condition New
        Max.Cutting Diameter 350mm, 400mm, 450mm, 550mm
        Max. Cutting Length 1000mm, 1500mm, 400mm, 600mm, 950mm
        Spindle motor 11Kw, 15KW, 18.5Kw, 37Kw
        Spindle speed 2,500rpm, 3,500rpm, 4,500rpm, 5,000rpm
        Turret Type VDI - 12 station
        Swing (Max) 530mm, 600mm, 650mm, 750mm
        Bar Capacity 103mm, 52mm, 65mm, 78mm

        Request a call about this machine

        Ready to purchase or have a question? Our team of experts are happy to help.

        Or call us on:

        +44 (0)1322 447611
