category: Machining Centres
Use: Industrial
Condition
Manufacturer

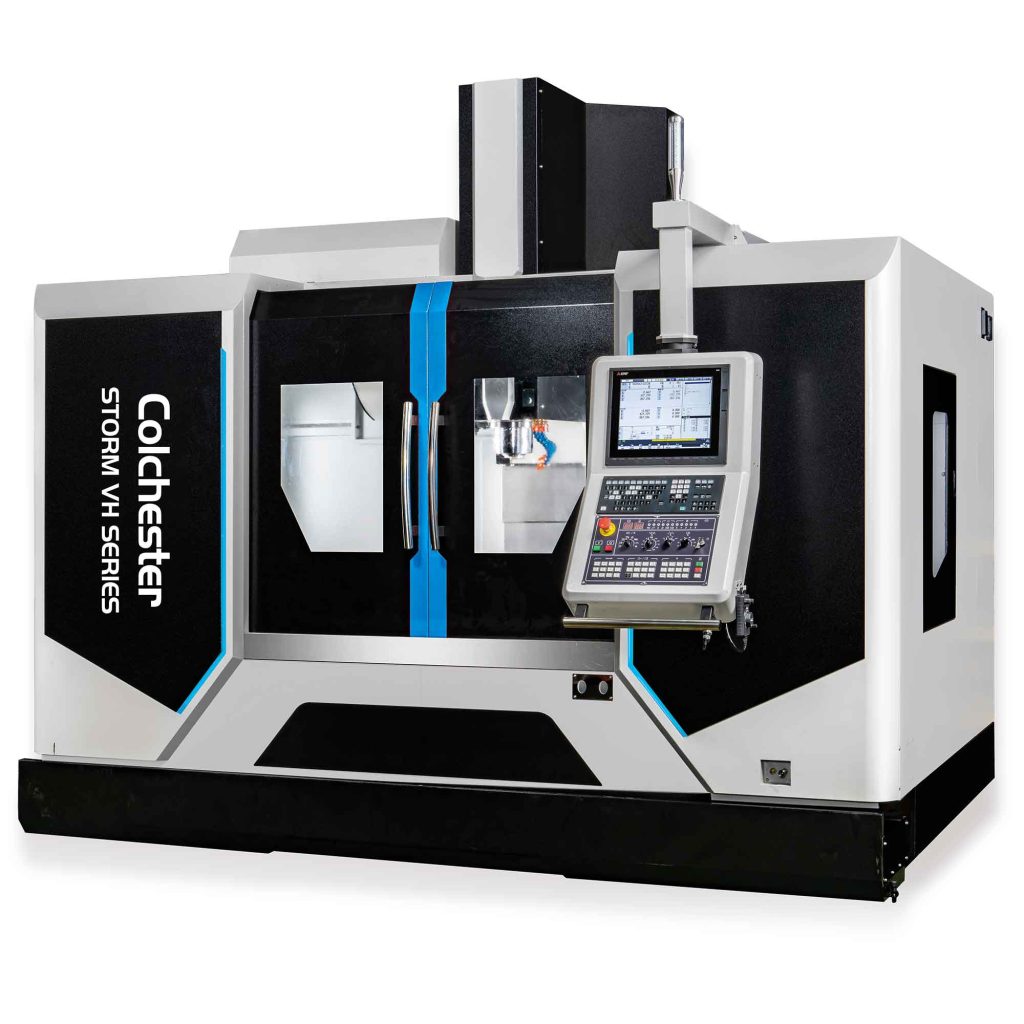

The Storm VH Series with its extra wide heavy duty box way design, ensure outstanding performance, accuracy and value throughout its lifetime. Through exceptional design, process control and build quality ensures that versatility and rigidity are integrated as standard, leading to superior component finish, performed smoothly and easily.
The Storm VH Series is also available with geared head spindle configuration for heavier cutting applications ensuring higher material removal rates while maintaining high precision and vibration free machining.
Why should you invest in a Storm?
• Shorter cycle times due to higher acceleration rates and higher axes traverse rates
• Conversational programming (no requirements for complex ISO programming)
• Longevity with total customer support
• Service and parts, parts stocked on-site for quick delivery
Standard Features
• Choice of Siemens, FANUC or Heidenhain CNC control systems with integrated safety
• Coolant wash down & air clean down gun
• LED status lights integrated into front guards
• Small footprint with large machining envelope
• Touch screen control
• Industry 4.0 ready
Optional Features
• Tool setting and component probing
• Through spindle coolant
• 4th and 5th axis rotary / tilting table
• Mist extraction
• Oil skimmer
• Swarf conveyor
| Model | VH-510, VH-610, VH-1100, VH-1300, VH-1600, VH-2000 |
|---|---|
| Condition | New |
| Table size | 1000x500mm, 1200x500mm, 1300x650mm, 1500x650mm, 1800x840mm, 2200x850mm, 600x320mm, 800x450mm, 950x500mm |
| X Travel | 1020mm, 1100mm, 1300mm, 1600mm, 2000mm, 510mm, 550mm, 610mm, 850mm |
| Y Travel | 410mm, 460mm, 510mm, 560mm, 610mm, 700mm, 800mm, 900mm |
| Z Travel | 460mm, 510mm, 560mm, 610mm, 700mm, 800mm |
| Spindle motor | 10KW, 15KW, 2.2kW, 22KW, 3.0kW, 4.0KW, 5.0KW, 7.5KW |
| Spindle Taper | BBT40, BT40, BT50 |
| Spindle speed | 10,000 rpm with 15,000 rpm option, 10,000rpm, 8,000rpm |
Ready to purchase or have a question? Our team of experts are happy to help.
