        category: Combination Lathes, Turning

        Colchester Multiturn XC 3 axis Combination Lathes

        Colchester Multiturn XC 3 axis Combination Lathes

        Jump to

        Use: Industrial

        Colchester Multiturn XC 3 axis Combination Lathes

        Additional information

        Condition

        CNC Control System

        Siemens 828D with Shopturn

        Manufacturer

        Machine options

        Machine overview

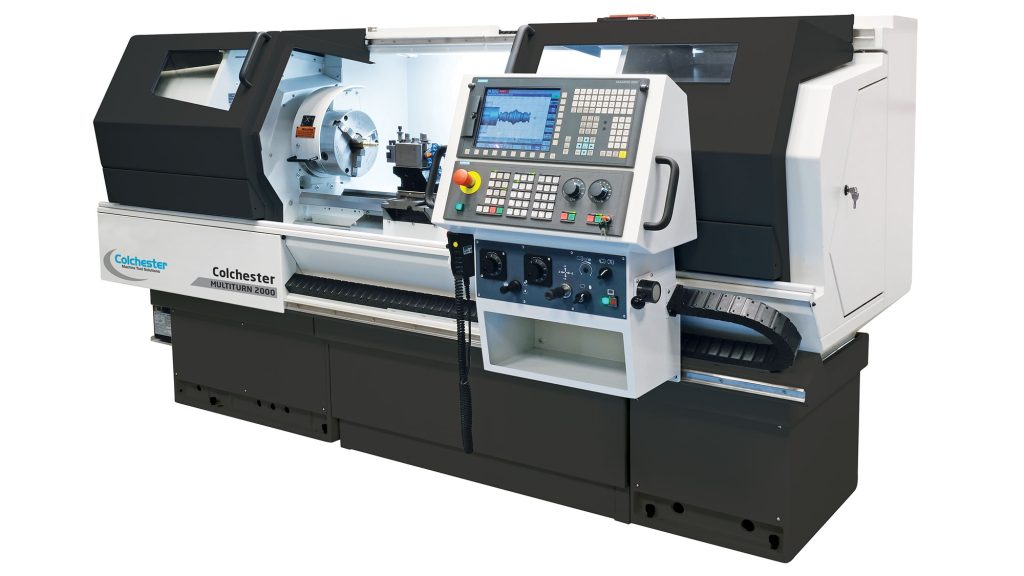

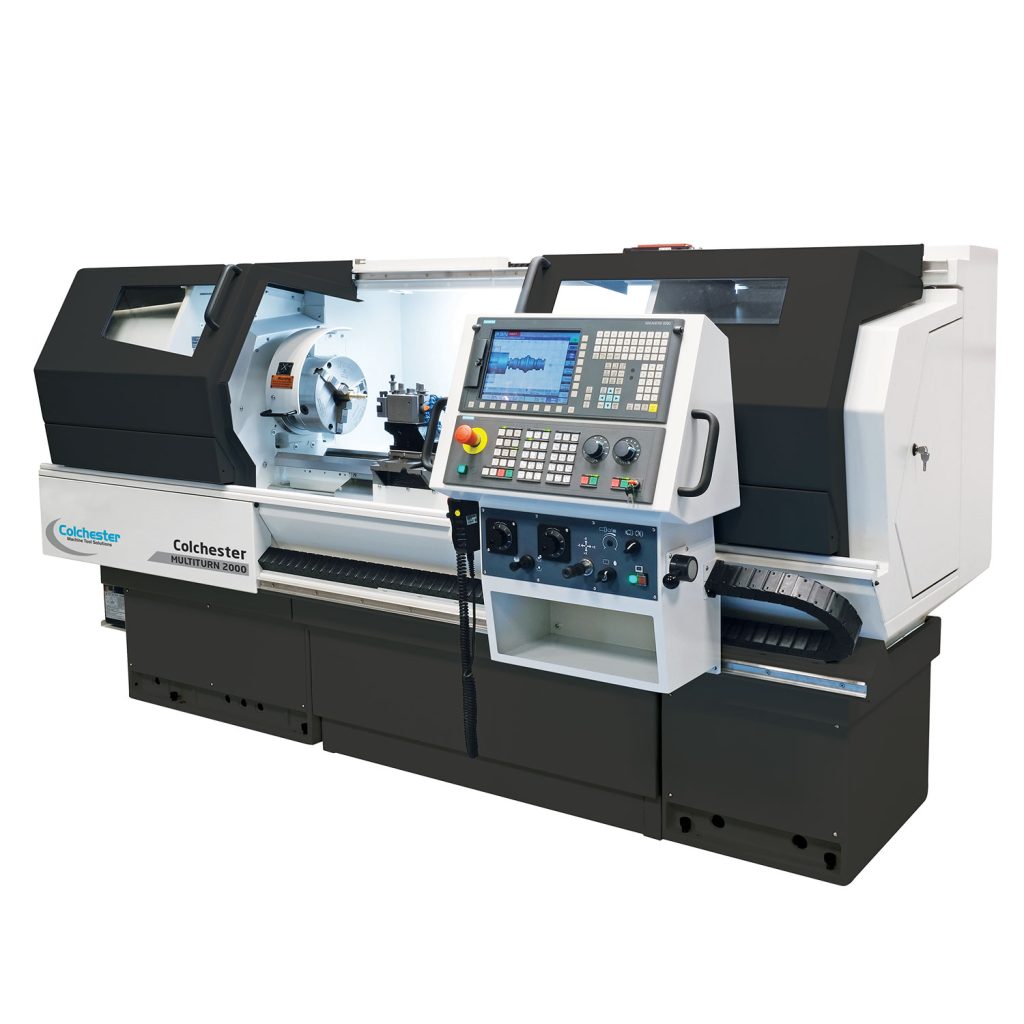

        Colchester Multiturn XC 3 axis designed for fast, high-quality repeatability, accuracy and surface finish to exacting toolroom accuracy standards (DIN 8605), which ultimately significantly reduces component production costs.

        The Multiturn XC MillTurn range incorporates turning with milling, drilling and tapping functionality, reducing the need for second operation production, and fitted with the latest state-of-the-art Siemens CNC control system with integrated ShopTurn conversational programming system makes the Multiturn the ideal machine for one-off and small and medium size batch machining.

        The Colchester Multiturn XC 3 axis flat-bed configuration and bed lengths of up to 6 metres means the Colchester MultiTurn is equally at home with long shafts, billets, bar stock, castings and much, much more. The lathe hardened and ground bedways are robustly manufactured from high performance cast-iron and fully engineered for maximum CNC capability.

        Specification

        Condition New
        Model Colchester Multiturn 2000XC, Colchester Multiturn 4000XC, Colchester Multiturn 6000XC

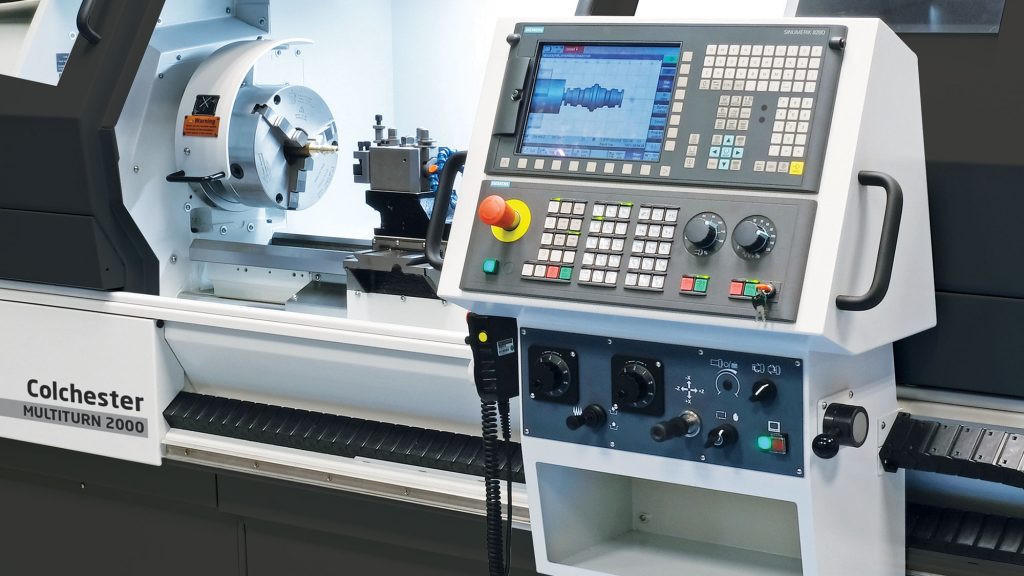

        CNC Control System Siemens 828D with Shopturn
        Swing over bed 400mm, 554mm, 760mm
        Turret Type VDI 20 - 8 Driven (of 8), VDI 40 - 12 Driven (of 12), VDI 40 - 4 Driven (of 8)
        Distance between centres 1200mm, 1500mm/2000mm/3000mm/4000mm, 2000mm/3000mm/4000mm/5000mm/6000mm
        Spindle Bore 104mm, 155mm, 42mm
