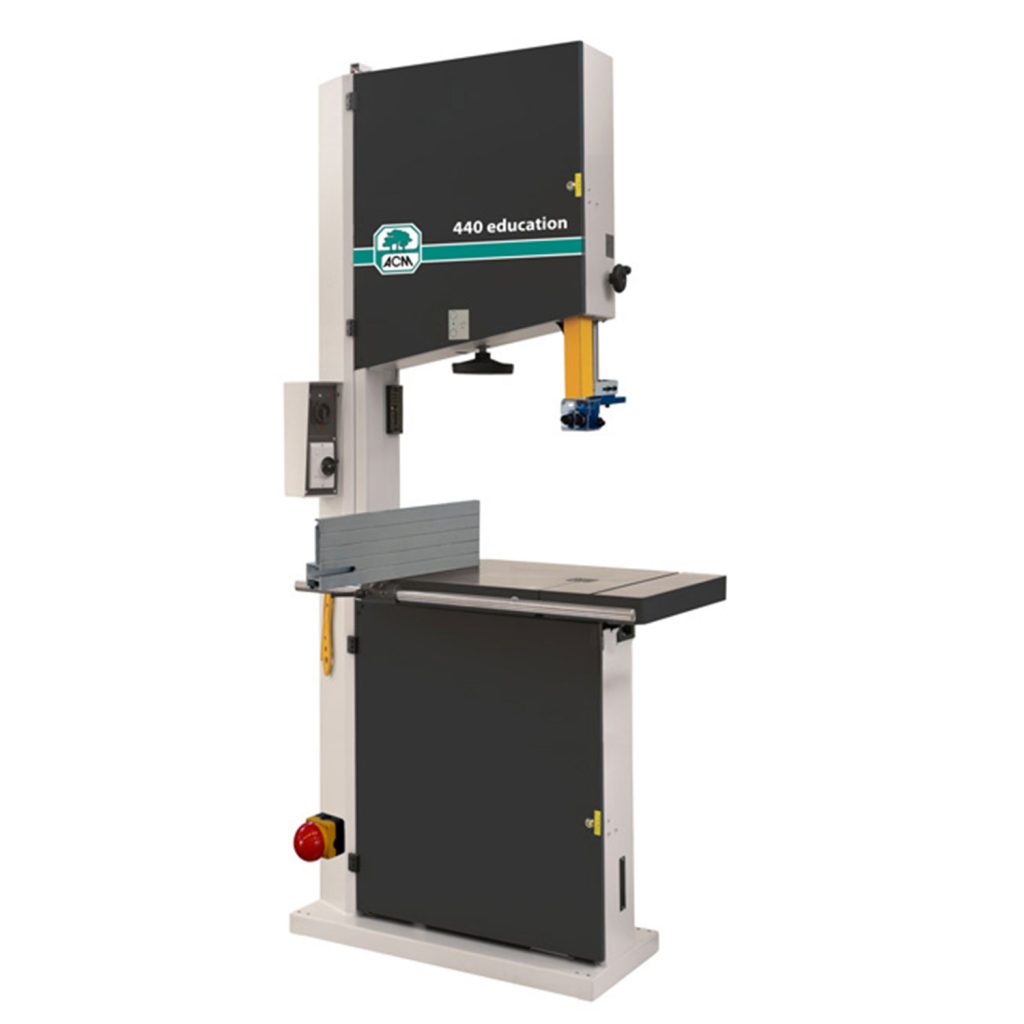

ACM Education Range for Wood & Plastics

Use: Educational

ACM Education Range for Wood & Plastics

Additional information

Condition

New

Manufacturer

ACM

Machine options

Model

Machine overview

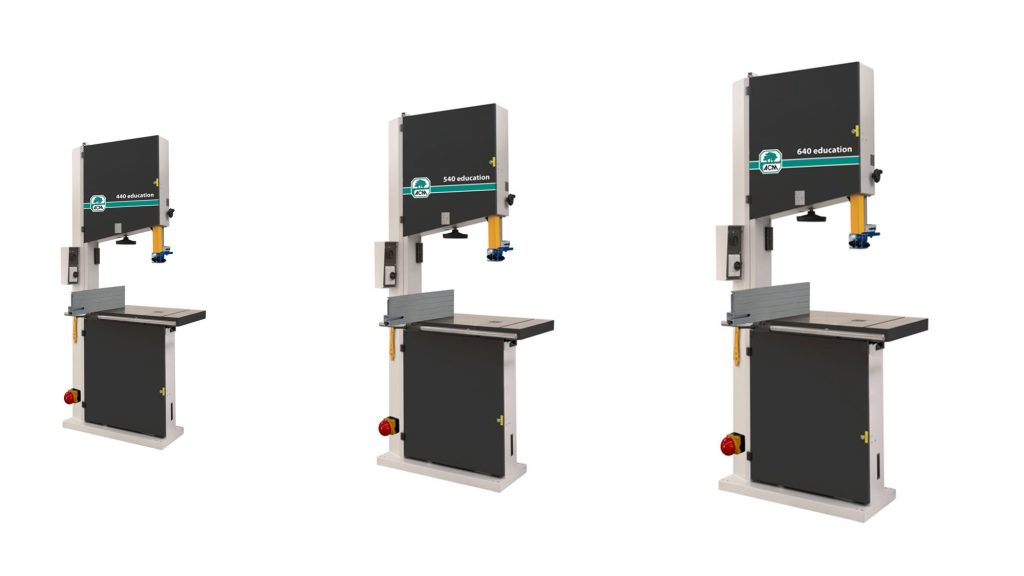

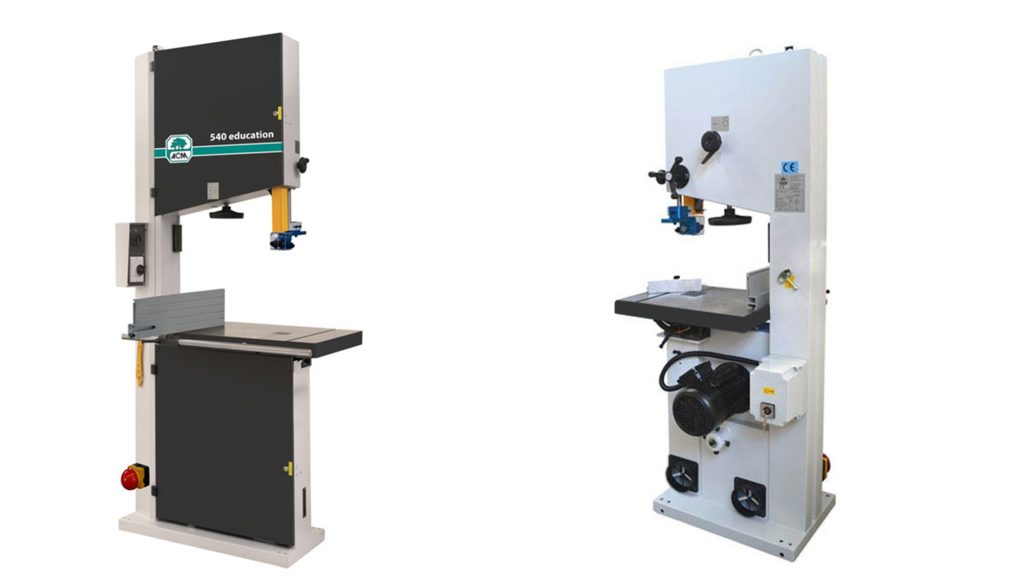

The ACM Education Range are a specially created series of bandsaws, designed and engineered to give technicians and students maximum security with traditional solidity and quality of an Italian made bandsaw. These machines are designed to cut woods & plastics, with the two speed machines also good for non ferrous metals.

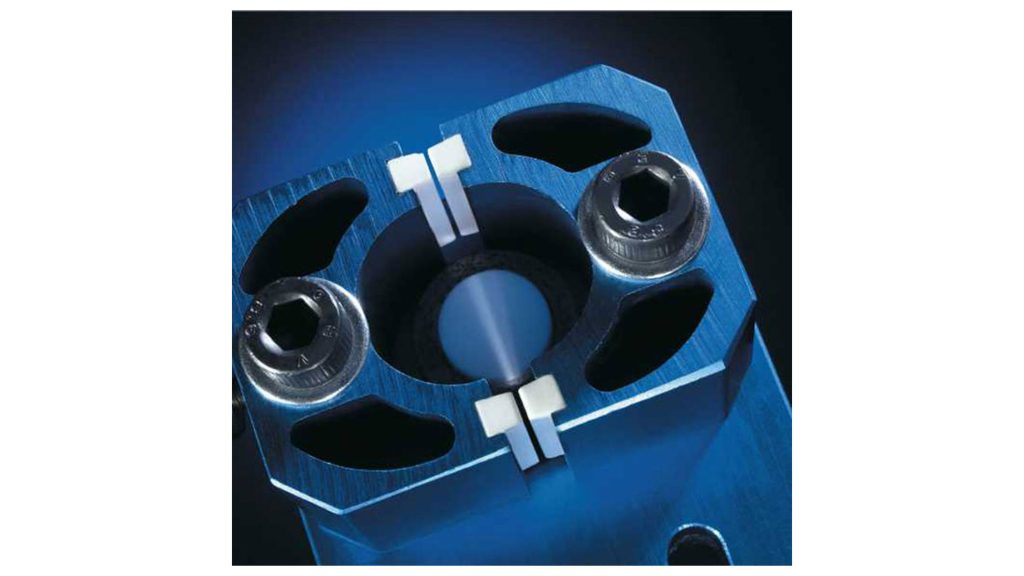

Space Age Laguna Ceramic Upper and Lower Roller Blade Guides
Self Releasing Kick Stop
Blade Tension Indicator
Key Locked Security System on Doors and Isolator
Manufactured in Italy for Consistency and Quality
Electro-Mechanical Motor Brake
Available in 240 Volt Single Phase
Single speed and two speed machines available.

Specification

Condition	New

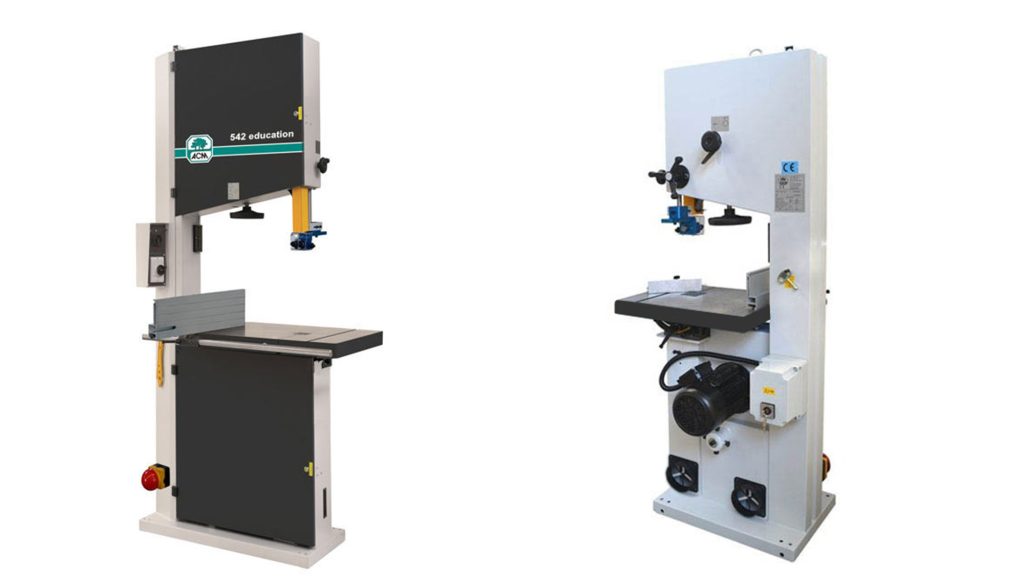

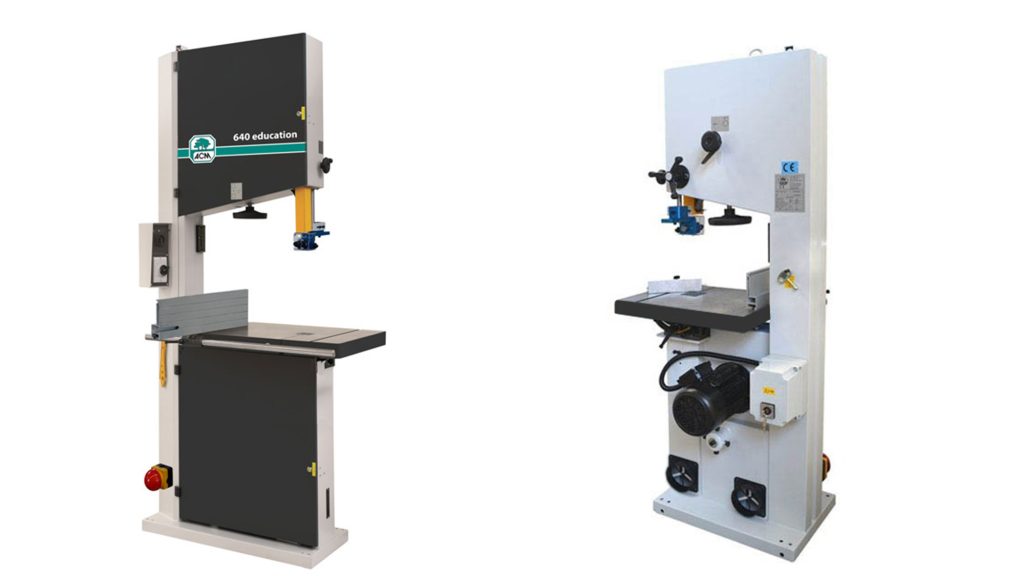

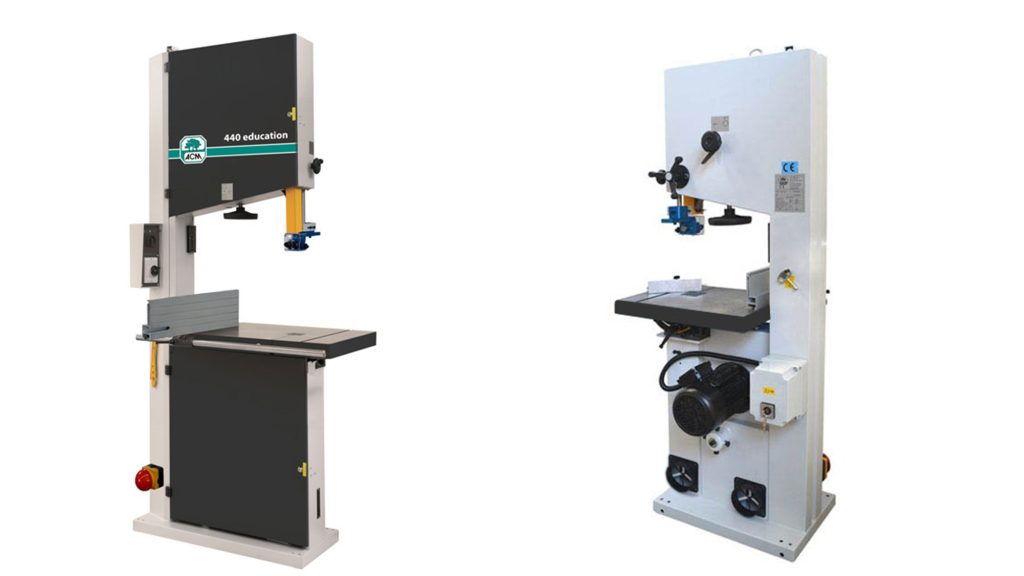

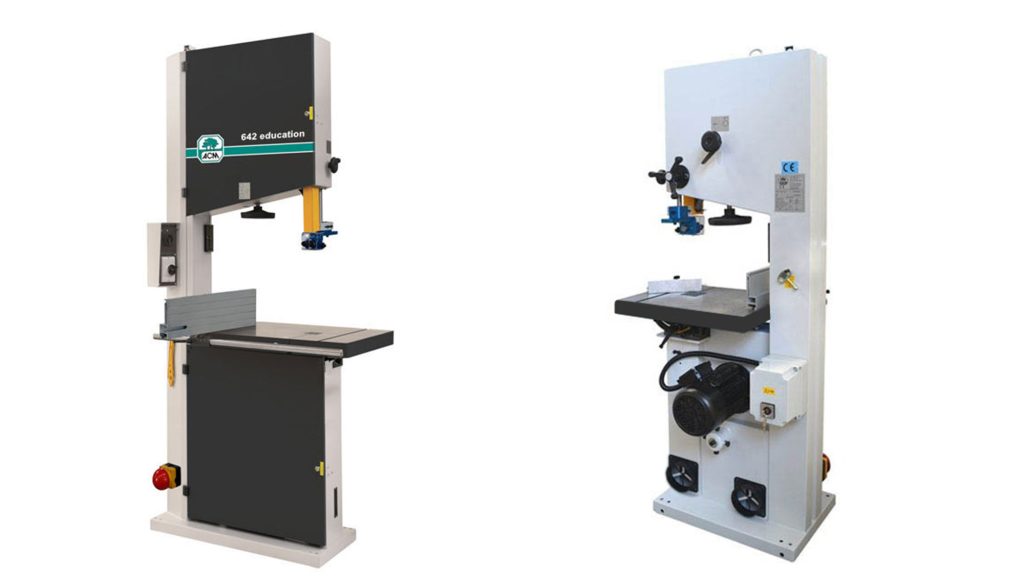

Model	ACM 440 Education, ACM 540 Education, ACM 640 Education, ACM 442 Education, ACM 542 Education, ACM 642 Education

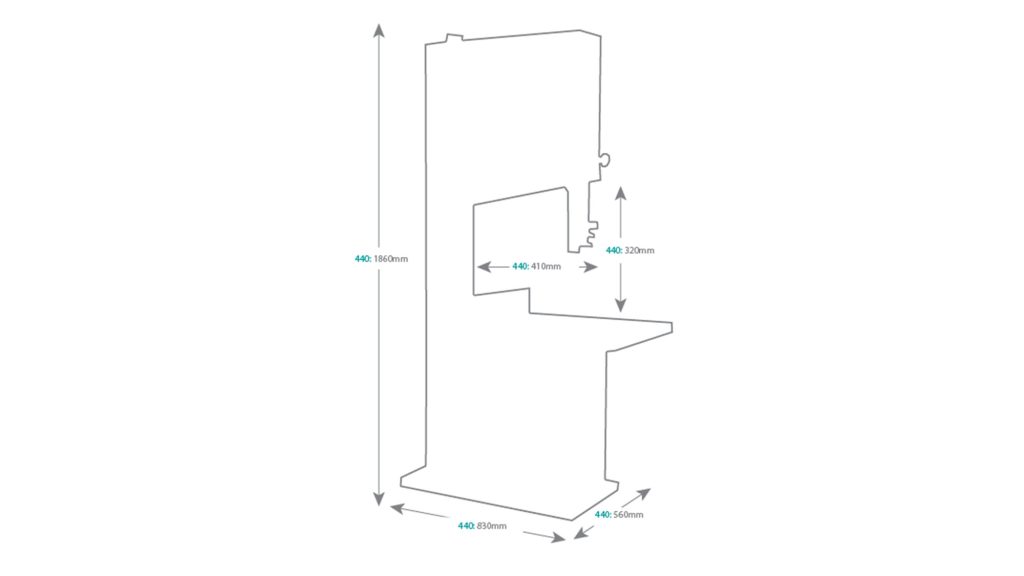

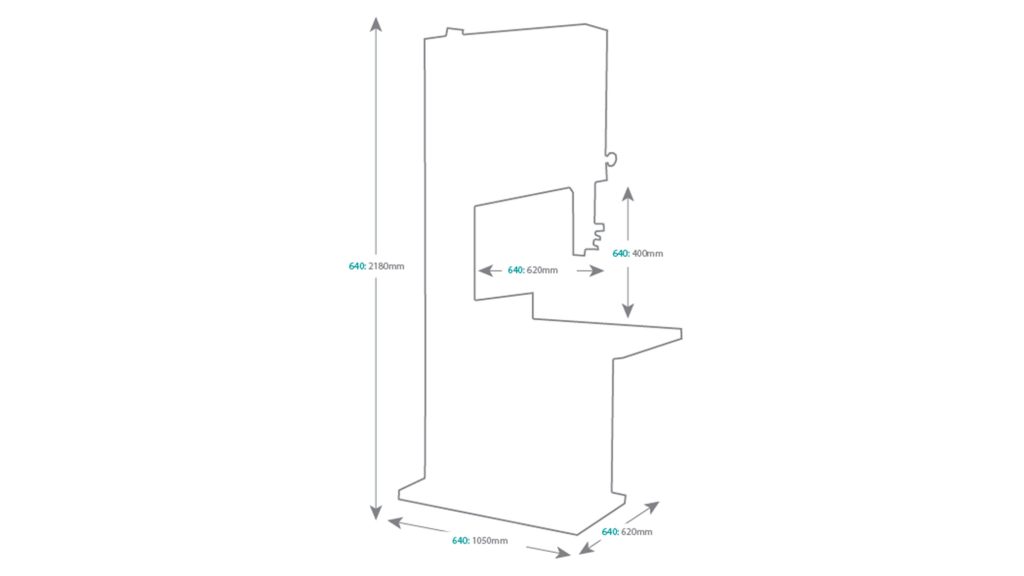

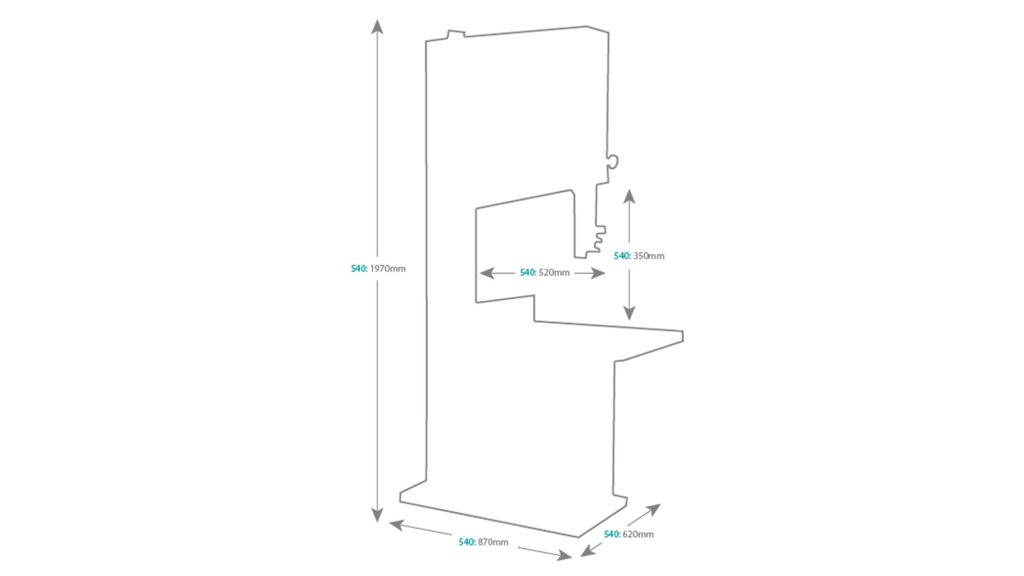

Max Throat	410mm, 520mm, 620mm
Max workheight	320mm, 350mm, 400mm
Wheel size	440mm, 540mm, 640mm
Blade Speed	1600 m/min, 750 - 1500 m/min
Motor Power	3 phase 2.3Hp (415v), Single Phase 3Hp (240v)
